S Series 3.5kW 16A Portable EV Charger
Description

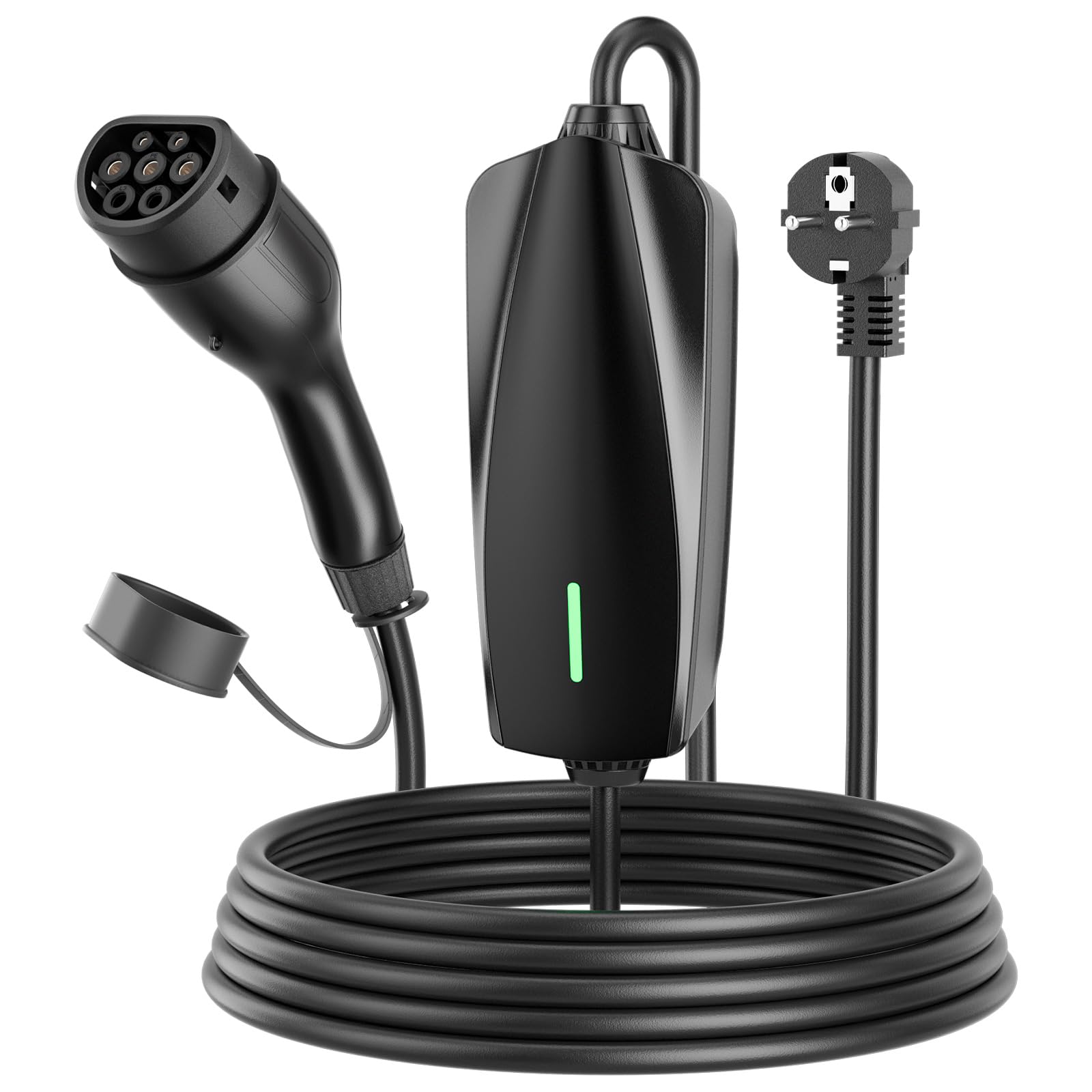

Zeeda Portable S Series is a convenient and compact portable EV charger that can be used anywhere given a power supply. It complies with EU standard and is CQC certified.
Additional information
| GENERAL SPECIFICATION | |
|---|---|
| Charging type | Level 2 Mode 2 |
| AC input/output power & current | 3.5kW / 16A |
| Input / output voltage | 230 V |
| Operating frequency | 50Hz |
| Connector type | Type 2 |
| Protection | Undervoltage/ Overvoltage, Overcurrent, Overheat, Short circuit, Leakage, Lightning protection |
| Dimensions | 230x110x67 mm / 9×4.3×2.6 in |
| Net weight | 3.2kg / 7lbs |
| OPERATING ENVIRONMENT | |
| Protection rating | IP 55 |
| Operating temperature | – 20°C – + 50°C |
| Storage temperature | – 30°C – + 70°C |
| Relative humidity | 5 – 95%, without condensation |
| Maximum altitude | 2000m |
| RCD current | 30mA |
| ADDITIONAL FUNCTION | |
| Temperature control plug | Optional |
| LCD Screen | Optional |
| CERTIFICATE | |
| CE | UKCA |
| RCM | ROHS (in process) |
| WEEE | REACH (in process) |
| TUV | (in process) |
